Pulverizer For Chili Spice Industrial Grinding Machine

  • Pulverizer For Chili Spice Industrial Grinding Machine
  • Pulverizer For Chili Spice Industrial Grinding Machine
  • Pulverizer For Chili Spice Industrial Grinding Machine
  • Pulverizer For Chili Spice Industrial Grinding Machine

Pulverizer For Chili Spice Industrial Grinding Machine

    Packaging: wooden packing
    Transportation: Express,Ocean,Land,Air
    Place of Origin: Jiangsu,China
    Supply Ability: 10 Set/Sets per Month
    Certificate: CE certification
    HS Code: 8479820090
    Port: Shanghai port

Basic Info

Model No.: WF-20B

Product Description

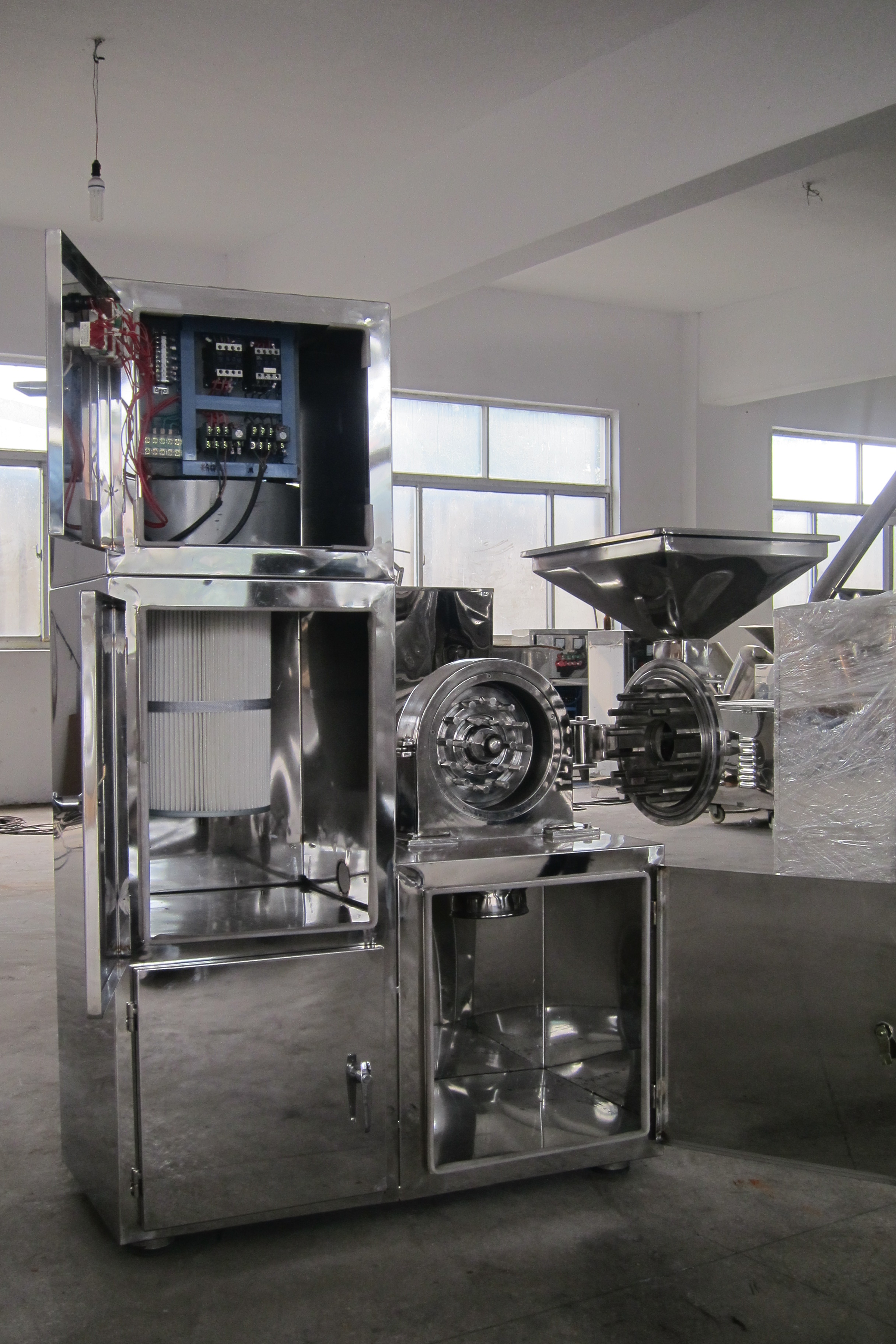

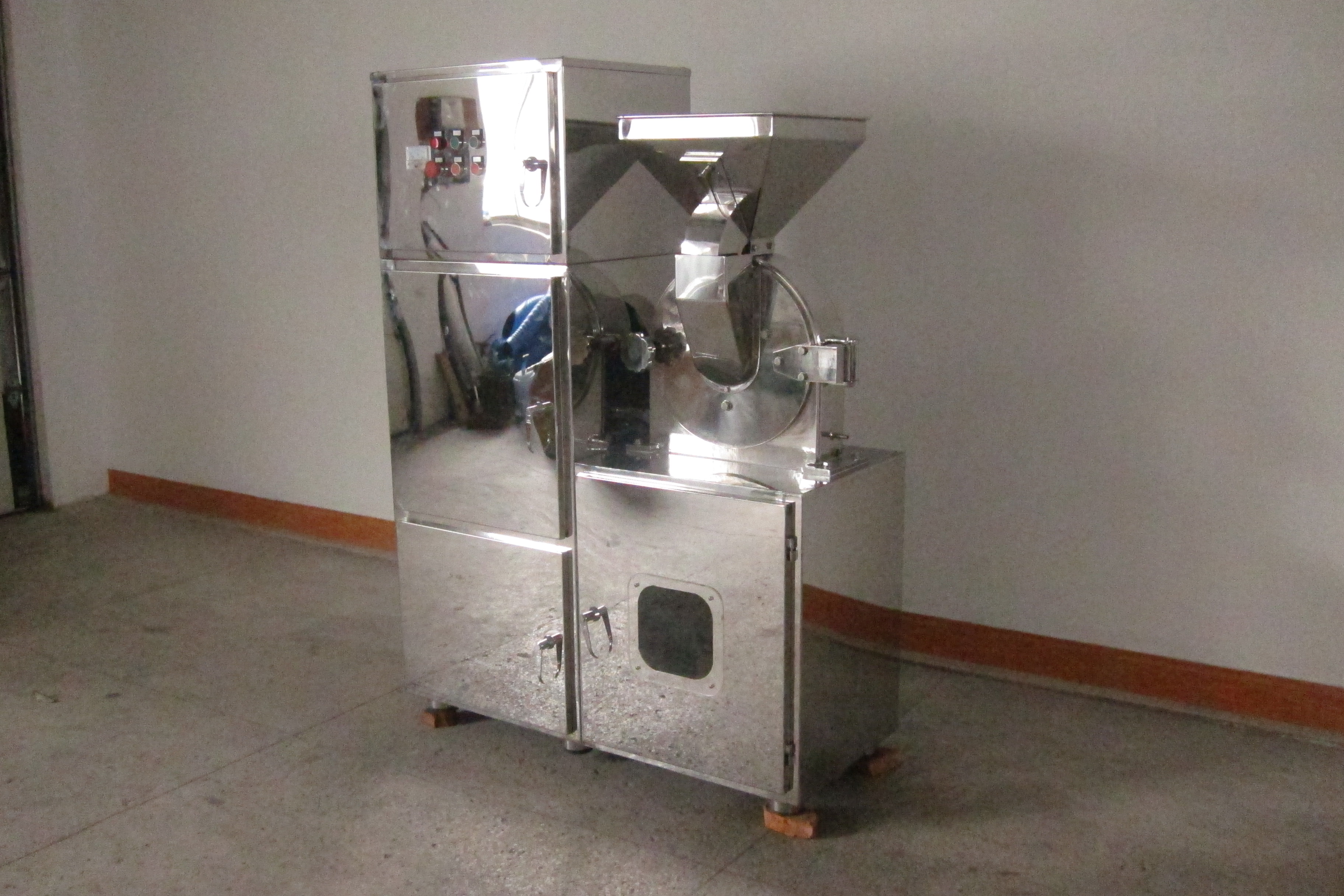

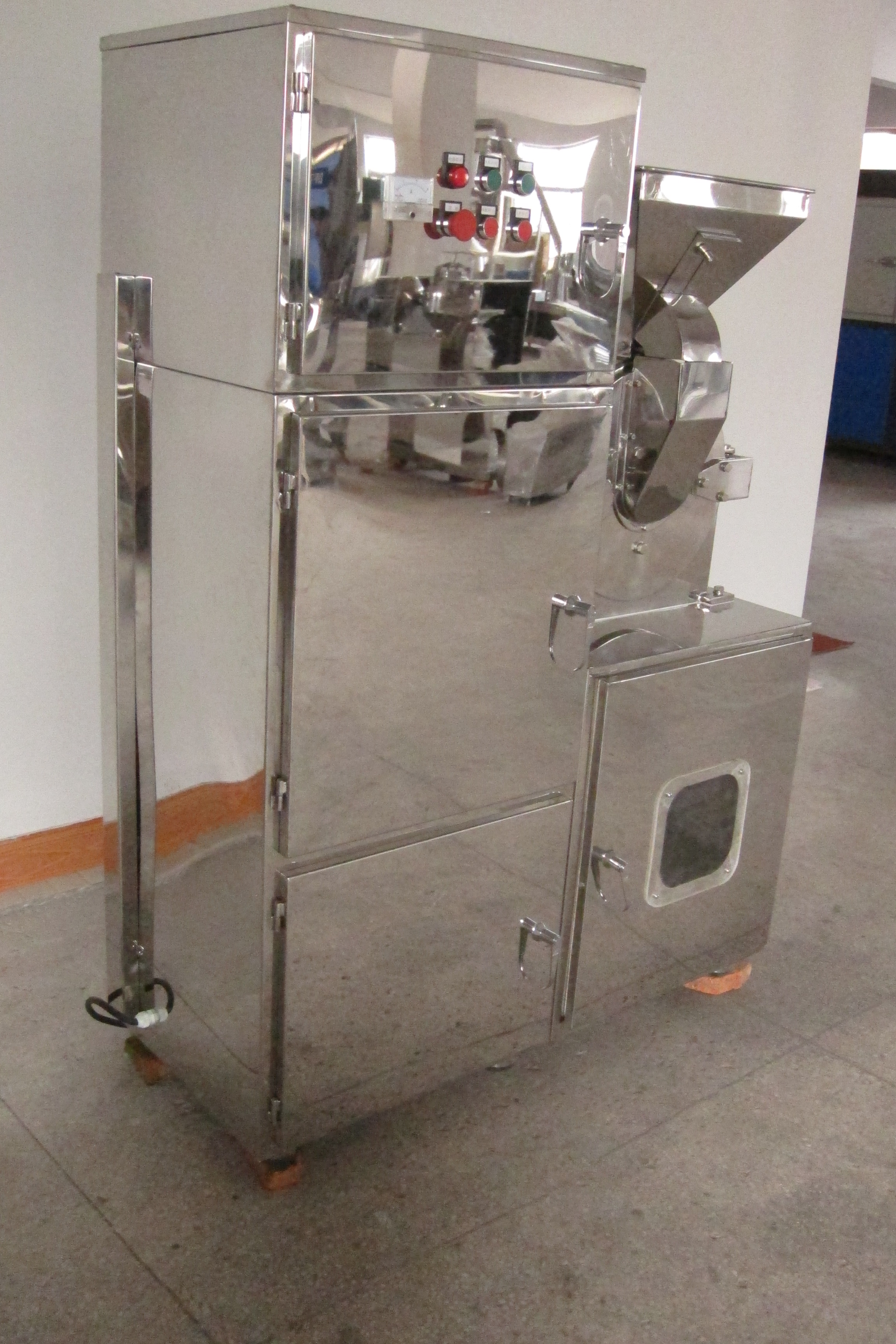

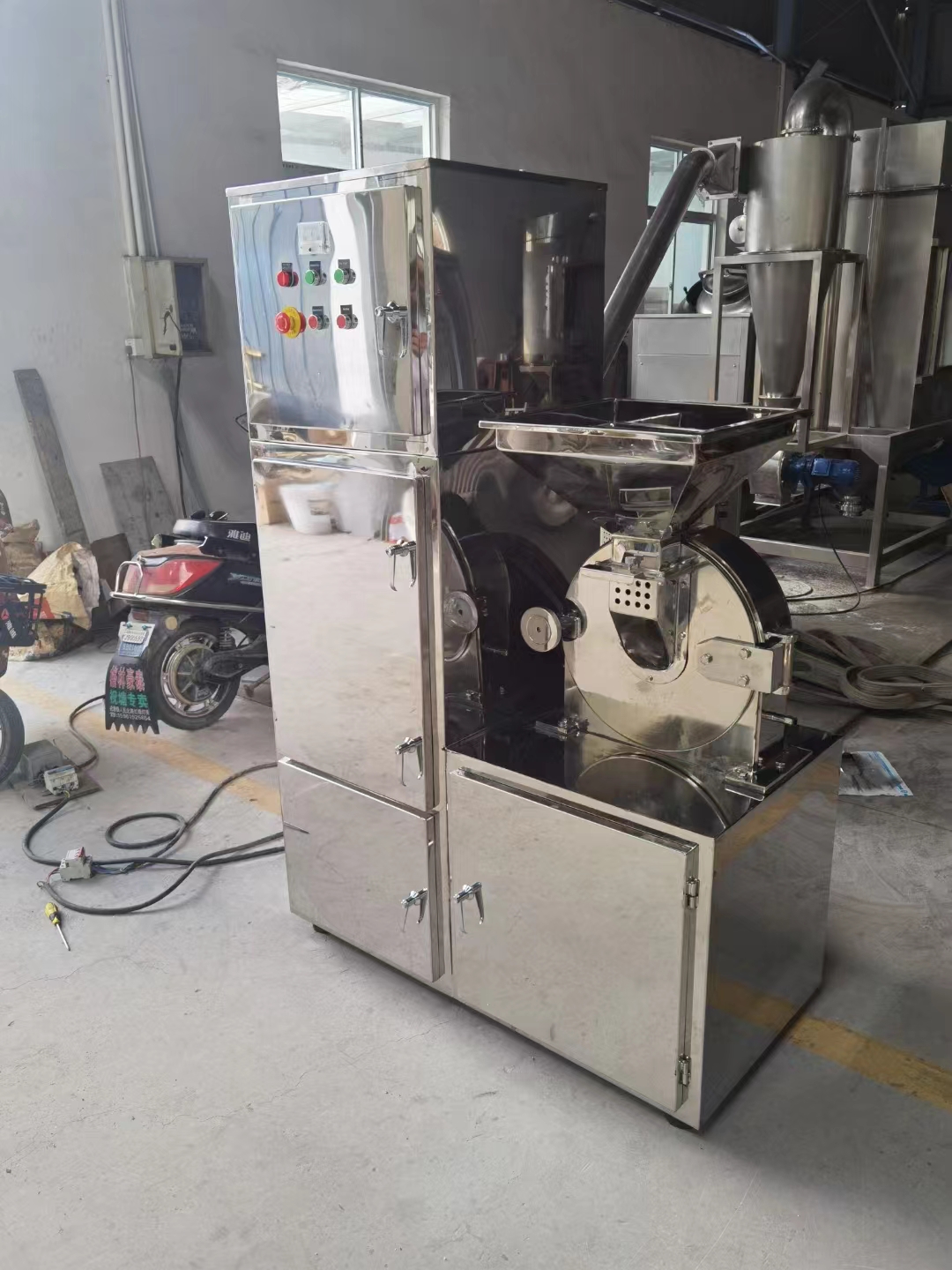

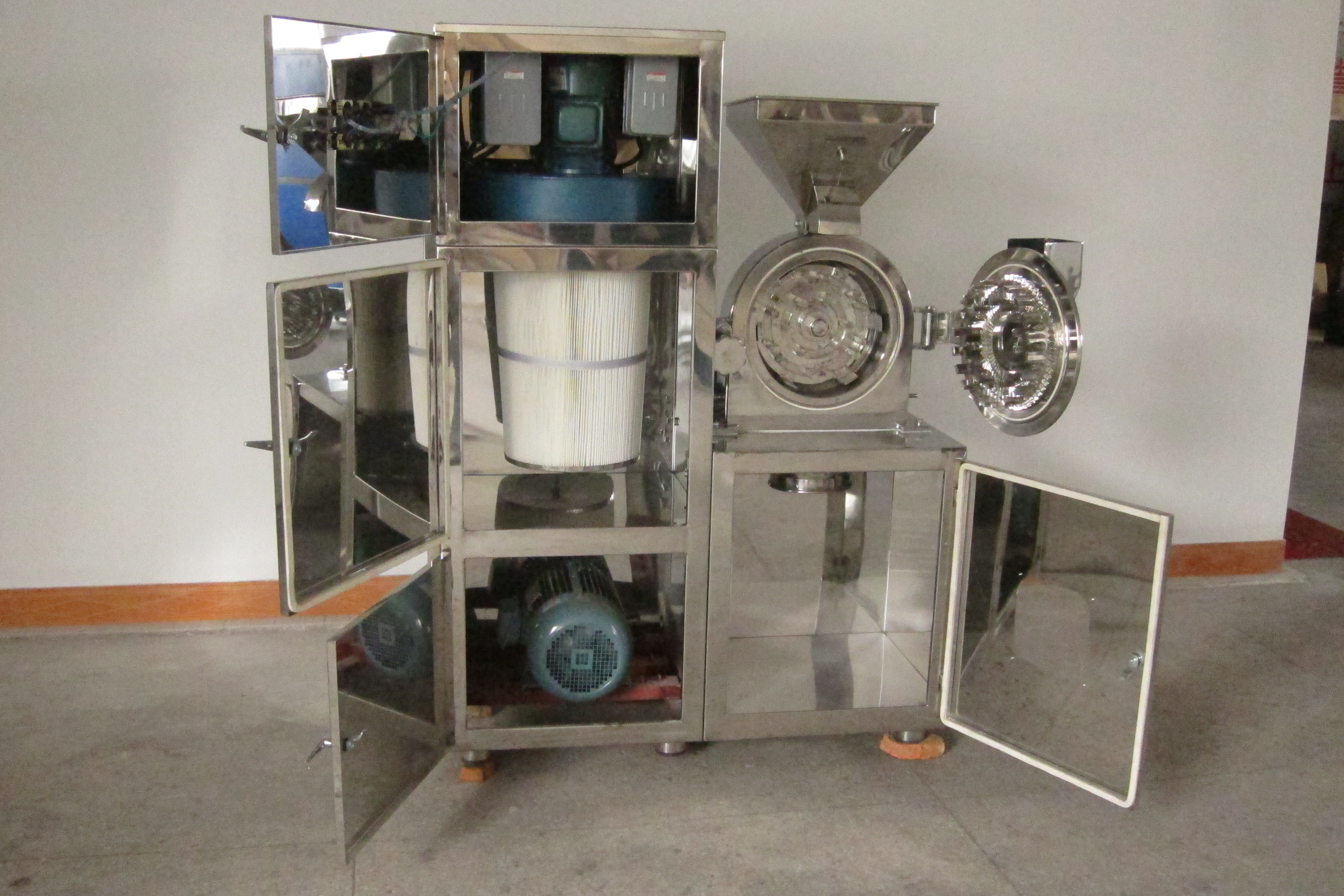

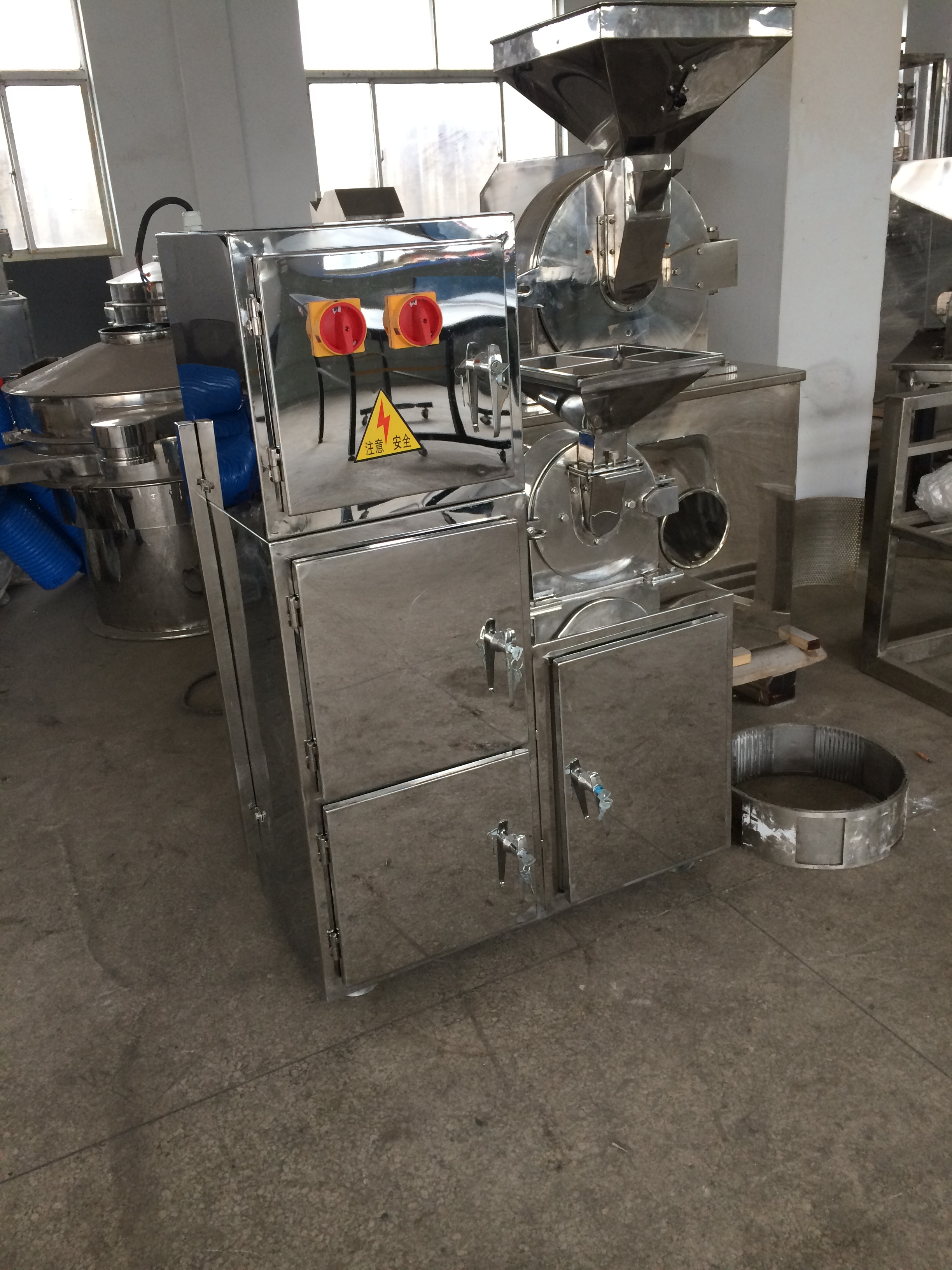

The dust absorption pulverizer consists of a grinder, a material collection box and a dust absorption box. The material enters the grinding chamber, and is crushed under the effect of the impact, shear, friction and material impact between the high-speed rotating movable tooth disc and the fixed tooth disc. After screening, it becomes the required powder. The dust is recovered by the dust collection box, which solves the problem of dust flying in the process of crushing. This machine can improve the utilization rate of materials, reduce the cost of enterprises, has reached the international advanced level.

WF Series Dust Absorption Pulverizer

Main Application The machine is mainly applied for the material grinding for the trades of pharmaceutics, chemical and foodstuff, etc.

Working method The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.The crushed material can enter the collection box by the centrifugal force,The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, thus to avoid dust flying, improve the utilization of raw material and decrease the production cost.Currently,the machine has been on the world advanced level.

Model
180B
20B
30B
40B
60B
Capacity(kg/h)
10-30
20-150
30-300
40-800
60-1200
Speed of principal axis(r/min)
6000
4500
3800
3400
2600
Size of input granules(mm)
<5
<6
<10
<12
<15
Fineness of products(mesh)
12-120
12-120
12-120
12-120
12-120
Grinding Power(kw)
2.2
4
5.5
7.5
15
Dust absorption power(kw)
0.75
1.5
1.5
1.5
1.5
Weight(kg)
180
350
420
580
750
Overallsize(mm)(L×W×H)
900×450×1250
1100×500×1650
1200×600×1650
1350×750×1700
1650×950×2100

pulverizer pulverizer
pulverizer pulverizer
pulverizer pulverizer


UNIVERSAL PULVERIZER 1. With water cooling system, widely used in pharmaceutical, food, chemical industry.2. Simple operation, powder can reach 100-120 mesh after crushing. By changing the screen to obtain different sizes of powder.

pulverizer
COARSE CRUSHER 1.Large material are broken into particle to prepare foe subsequent fine crushing. 2.Get particles of different sizes through screen adjustment.

crusher

DUST ABSORPTION COARSE CRUSHER 1.Used for coarse crushing of large materials into particles.2.Coarse crusher with dust removal function, prevent dust flying.

crusher
CHINESE HERBAL MEDICINE PULVERIZER 1.Suitable for crushing materials containing more fiber such as Chinese herbal medicine. 2.Through high-speed rotation of the
blade to crush the material, fineness can reach 200-250 mesh.

pulverizer

MINI POWDER PULVERIZER 1.The fineness of pulverized powder can reach over 250 mesh.2.with the capabilities of winnowing, non-sieve or mesh equality of granule size and continuous processing,etc.

pulverizer
AIR COOLED PULVERIZER 1.Especially suitable for grinding slightly sticky materials such as spices.2.The crushing chamber equipped with the wind wheel type high speed rotating cutter ,so that the airflow in the cavity is strong enough to eliminate any heat in the machine.



pulverizer
